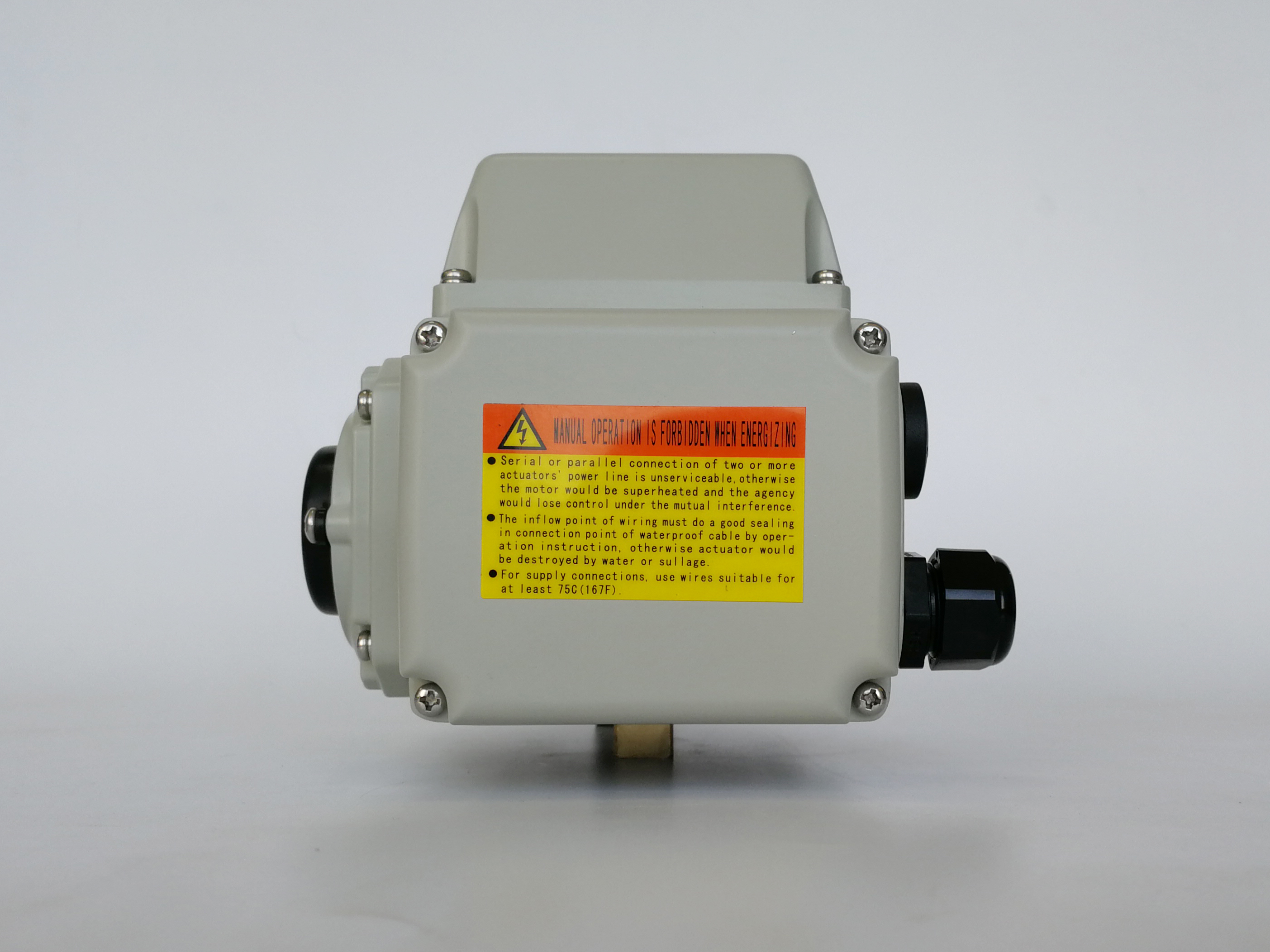

DC24V 30S 100Nm over torque protection Water-proof Electric Actuator

Watertight compact electric quarter turn actuator / over torque protection optional

Performance Parameters

Description

DCL common-series electric actuators are typically used to operate quarter-turn butterfly valves, ball valves, dampers, and swing arms. When a continuous power signal is received, the motor rotates in one direction and drives the output through an all-metal gearbox equipped with a final-stage worm gear, completing a 90° rotation. The motor automatically stops when the internal cams engage the limit switches. When a reverse continuous signal is applied, the motor runs in the opposite direction, driving the output back to its original position.

An over-torque protector is available as an option when precise torque control is required. A PTC electronic heating element is also integrated as a thermostatically controlled anti-condensation heater, protecting the actuator from moisture-related damage.

Features Summary

Features

• Quarter turn operation with mechanical limits
• Rugged IP67 watertight, robust die cast aluminum enclosure/100% test under water
• Two auxiliary limit switches to confirm valve position
• Visual valve position indicator/flat or convex
• Manual override/handwheel optional
• Thermal overload protection heavy duty motor with PTC overheating protector
• Self-locking all metal gear drive, no additional brake required
• Over torque protector is optional for actuators torque larger than 100Nm
• CSA Listed per UL429 and CSA C22.2, CE mark, comply RoHS 3

Application

1. University LABS, automotive laboratories.
2. diesel fuel saving, etc.
3. Small equipment such as water saving, automatic control system and industrial automatic control in colleges and universities.
4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works.
5. Water-saving appliances, drinking water equipment, etc.
